AB7306-B-5PACK
Производитель: HMS Industrial Networks AB (Швеция)
Модель: 14875-17
Артикул: AB7306-B-5PACK
Наличие: Предзаказ
Модель: 14875-17
Артикул: AB7306-B-5PACK
Наличие: Предзаказ
Кол-во:
- или -
В закладки
В сравнение
В сравнение

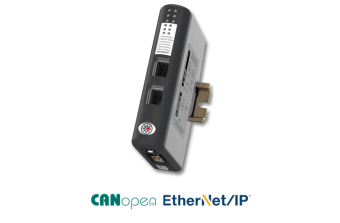

Anybus X-gateway – CANopen Master – EtherNet/IP Adapter
The Anybus X-gateway CANopen provides a seamless connection between a EtherNet/IP network and a secondary CANopen sub-network. This makes it possible to integrate CANopen devices into a EtherNet/IP PLC system.
FAST COPYING OF I/O DATA
The X-gateway's primary function is fast transfer of cyclic I/O data between the two networks. I/O data from the EtherNet/IP network is written into CANopen objects that can be mapped into CANopen PDOs and vice versa. The gateway acts as a full Master/Manager on the CANopen network and as an Adapter on the EtherNet/IP network. The data transmission between the two networks is completely transparent with a maximum data capacity of 510 bytes in each direction.
EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
CANopen configuration can easily be made through the included Anybus Configuration Manager CANopen software, or with any other standard CANopen configuration tool. No programming skills are needed.
| Коммуникационные интерфейсы | |
| Интерфейсы | CANopen Master-EtherNet/IP 2-Port Slave |
| Поддержка CANopen | 20 kbit/s - 1 Mbit/s |
| Управляемый: | On-board for CANopen node address and baud rate setting |
| Конструктив | |
| Назначение | Шлюз CANopen Master |
| Серия | X-gateway CANopen |
| Степень защиты корпуса: | IP20, NEMA rating 1 |
| Возможности монтажа | DIN-rail (EN 50022 standard) |
| Температура хранения | -40 to +85 ℃ or -40 to +185°F |
| Температура эксплуатации: | -25 to +55 ℃ or 0 to +131°F |
| Вес, кг. | 150g or 0,33 lbs |
| Габариты, мм | 120 x 75 x 27mm or 4,72 x 2,95 x 1,06" |
| Гарантия от производителя | 3 years |
| Дополнительные аксессуары | USB-CAN configuration adapter (Order Code 021670) (License included) Anybus IPconfig Tool -Utility for module TCP/IP configuration (Windows 32/64-bit) Downloadable under Files and Documentation |
| Комплект поставки | Resource CD,Quick start guide, manuals. Anybus Configuration Manager CANopen software. (License not included) Anybus OPC server software. (single-piece only) For bulk pack orders,all configurationsoftwarecanbedownloaded under "files anddocumentation" from this website. (Power supply not included) |
| Сертификаты | CE,CULUS, ATEX/Haz.Loc, RoHS |
| Примечание | X-gateways with 5-pack part numbers are shipped without any accessories. |
| Порты | |
| Портов CANopen | D-sub 9 Male (Included) |
| Портов Fieldbus/Ethernet | (See interface details above) |
| Питание | |
| Входное напряжение питания DC: | 24 VDC |
