AB7304-B

AB7304-B
Производитель: HMS Industrial Networks AB (Швеция)
Модель: 14870-17
Артикул: AB7304-B
Наличие: Предзаказ
Кол-во:     - или -   В закладки
В сравнение

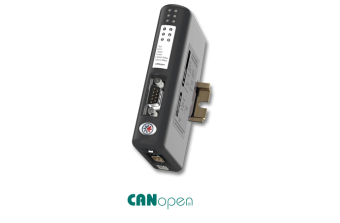

Anybus X-gateway - CANopen Master - CANopen Slave

The Anybus X-gateway CANopen provide a seamless connection between a CANopen upper network and a secondary CANopen sub-network. This makes it possible to extend CANopen network and devices without a secondary PLC system.

FAST COPYING OF I/O DATA
The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. I/O data from one CANopen network is written into CANopen objects that can be mapped into CANopen PDOs and vice versa. The gateway acts as a full CANopen Master/Manager on one side and a CANopen Slave on the other side. The data transmission between the two CANopen networks is completely transparent with a maximum data capacity of 510 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
CANopen configuration can easily be made through the included Anybus Configuration Manager CANopen software, or with any other standard CANopen configuration tool. No programming skills are needed.

Коммуникационные интерфейсы
Интерфейсы CANopen Master-CANopen Slave
Поддержка CANopen 20 kbit/s - 1 Mbit/s
Управляемый: On-board for CANopen node address and baud rate setting
Конструктив
Назначение Шлюз CANopen Master
Серия X-gateway CANopen
Степень защиты корпуса: IP20, NEMA rating 1
Возможности монтажа DIN-rail (EN 50022 standard)
Температура хранения -40 to +85 ℃ or -40 to +185°F
Температура эксплуатации: -25 to +55 ℃ or 0 to +131°F
Вес, кг. 150g or 0,33 lbs
Габариты, мм 120 x 75 x 27mm or 4,72 x 2,95 x 1,06"
Гарантия от производителя 3 years
Дополнительные аксессуары USB-CAN configuration adapter -Anybus Configuration Manager - CANopen Configuration Kit(Order Code 021670) (License included)
Комплект поставки Resource CD, Quick start guide, manuals. Anybus Configuration Manager CANopen software. (License not included) For bulk pack orders, all configuration software can be downloaded under "files anddocumentation" from this website. (Power supply not included)
Сертификаты CE,CULUS, ATEX/Haz.Loc, RoHS
Порты
Портов CANopen D-sub 9 Male (Included)
Портов Fieldbus/Ethernet (See interface details above)
Питание
Входное напряжение питания DC: 24 VDC
