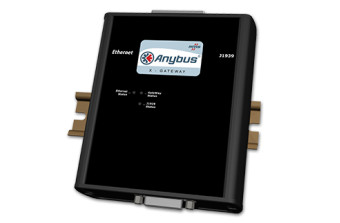

AB7665-C

Anybus X-gateway – Ethernet Adapter/Server – J1939

The Anybus X-gateway allows you to monitor and control data on a J1939 heavy duty vehicle network from an Ethernet-based PLC system or device. The EtherNet/IP and Modbus TCP protocols are supported.

FAST COPYING OF I/O DATA Data from J1939 messages are mapped to I/O table locations, making them accessible to the Ethernet network. The X-gateway acts as an EtherNet/IP Adapter, allowing J1939 data to be transferred to an EtherNet/IP Scanner device using I/O or explicit messages. The module acts as a Modbus TCP server, allowing J1939 data to be addressed as Modbus registers by a Modbus TCP client device.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED! HMS provides the X-gateway with a free Windows based configuration tool (BWConfig). This PC based software allows the user to map J1939 parameter (PGN) data into a range of memory addressable through the X-gateway Ethernet interface.

Configuration of the X-gateway is simple using BWConfig and consists of setting up an I/O table containing selected J1939 PGNs and the rate that each will be read or written from the J1939 network. BWConfig will then automatically map the I/O table to a range of addresses accessible from the X-gateway Ethernet interface.

Коммуникационные интерфейсы
Интерфейсы	EtherNet/IP Slave-J1939 Slave
Управляемый:	via 9-pin DSUB RS-232 port with the included BWConfig Windows software
Конструктив
Назначение	Шлюз EtherNet/IP Slave
Серия	X-gateway
Степень защиты корпуса:	IP20, NEMA rating 1
Конструкция корпуса:	Aluminium
Вид монтажа:	Vertical
Гальваническая изоляция	YES, on both BUS/Ethernet side
Возможности монтажа	DIN-rail (EN 50022 standard)
Температура хранения	-25 to +85 ℃ or -13 to +185°F
Температура эксплуатации:	0 to +70 ℃ or +32 to +158°F
Вес, кг.	500g or 1,10 lbs
Габариты, мм	126 x 110 x 42mm or 4,96 x 4,33 x 1,65"
Гарантия от производителя	3 years
Комплект поставки	Resource CD with "BWConfig" Windows software,Manuals, Installation Guide, 5-pole 5.08 mm Phoenix pluggable screw J1939 connector 2-pole 5.08 mm Phoenix pluggable screw connector (Power supply not included)
Сертификаты	CE,CULUS
Питание
Входное напряжение питания DC:	24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
Ток потребления:	max. 300mA (Typical 200mA)
