AB7303-B-5PACK

AB7303-B-5PACK
Производитель: HMS Industrial Networks AB (Швеция)
Модель: 14869-17
Артикул: AB7303-B-5PACK
Наличие: Предзаказ
Кол-во:     - или -   В закладки
В сравнение

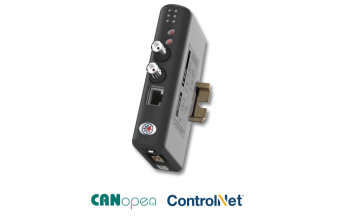

Anybus X-gateway – CANopen Master – ControlNet Adapter

The Anybus X-gateway CANopen provides a seamless connection between a ControlNet network and a secondary CANopen sub-network. This makes it possible to integrate CANopen devices into a ControlNet PLC system.

FAST COPYING OF I/O DATA
The X-gateway's primary function is fast transfer of cyclic I/O data between the two networks. I/O data from the ControlNet network is written into CANopen objects that can be mapped into CANopen PDOs and vice versa. The gateway acts as a full Master/Manager on the CANopen network and as an Adapter on the ControlNet network. The data transmission between the two networks is completely transparent with a maximum data capacity of 510 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
CANopen configuration can easily be made through the included Anybus Configuration Manager CANopen software, or with any other standard CANopen configuration tool. No programming skills are needed.

Коммуникационные интерфейсы
Интерфейсы CANopen Master-ControlNet Slave
Поддержка CANopen 20 kbit/s - 1 Mbit/s
Управляемый: On-board for CANopen node address and baud rate setting
Конструктив
Назначение Шлюз CANopen Master
Серия X-gateway CANopen
Степень защиты корпуса: IP20, NEMA rating 1
Возможности монтажа DIN-rail (EN 50022 standard)
Температура хранения -40 to +85 ℃ or -40 to +185°F
Температура эксплуатации: -25 to +55 ℃ or 0 to +131°F
Вес, кг. 150g or 0,33 lbs
Габариты, мм 120 x 75 x 27mm or 4,72 x 2,95 x 1,06"
Гарантия от производителя 3 years
Дополнительные аксессуары USB-CAN configuration adapter -Anybus Configuration Manager - CANopen Configuration Kit(Order Code 021670) (License included)
Комплект поставки Resource CD, Quick start guide, manuals. Anybus Configuration Manager CANopen software. (License not included) For bulk pack orders, all configuration software can be downloaded under "files anddocumentation" from this website. (Power supply not included)
Сертификаты CE,CULUS, ATEX/Haz.Loc, RoHS
Примечание X-gateways with 5-pack part numbers are shipped without any accessories.
Порты
Портов CANopen D-sub 9 Male (Included)
Портов Fieldbus/Ethernet (See interface details above)
Питание
Входное напряжение питания DC: 24 VDC
