AB7008-B

AB7008-B
Производитель: HMS Industrial Networks AB (Швеция)
Модель: 14574-17
Артикул: AB7008-B
Наличие: Предзаказ
Кол-во:     - или -   В закладки
В сравнение

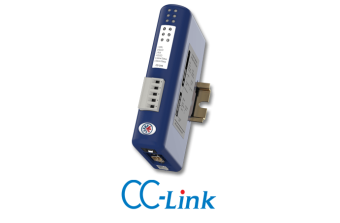

Anybus Communicator - CC-Link

Integrate your serial RS-232/422/485 based industrial devices and equipment to a CC-Link control system without the need for any changes to the device. Just connect, configure and you're done!

The Anybus Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to CC-Link. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current CC-Link specifications guaranteeing network compatibility.

Convert almost any type of serial protocol

The Communicator is capable of converting almost any type of serial protocol such as Modbus RTU, ASCII, DF1 or any other type of proprietary Query/Response or Produce/Consume protocol.

Typical serial applications

Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.

Коммуникационные интерфейсы
Интерфейсы CC-Link
Протокол: ASCII/Vendor Specific Request/Response or Produce/Consume
Протокол: Rockwell DF1 DF1 Master
Протокол: Modbus RTU   Modbus RTU Master - Request/Response
Конструктив
Назначение Шлюз CC-Link
Серия Anybus Communicator
Степень защиты корпуса: IP20, NEMA rating 1
Max stations   31 nodes via RS-422 or RS-485
Возможности монтажа DIN-rail (EN 50022 standard)
Температура хранения -40 to +85 ℃ or -40 to +185°F
Температура эксплуатации: 0 to +55 ℃ or 0 to +131°F
Вес, кг. 150g or 0,33 lbs
Габариты, мм 120 x 75 x 27mm or 4,72 x 2,95 x 1,06"
Гарантия от производителя 3 years
Дополнительные аксессуары USB-RS-232 configuration adapter (Order Code 019570)
Комплект поставки Resource CD, Configuration cable (RS-232) port, Installation sheet, D-sub connector with screw terminals for serial sub-network (Power supply not included)
Сертификаты CE,CULUS, ATEX/Haz.Loc, RoHS
Примечание The single pack includes a CD, a config cable and a sub-network DSUB connector
Питание
Входное напряжение питания DC: 24 VDC
